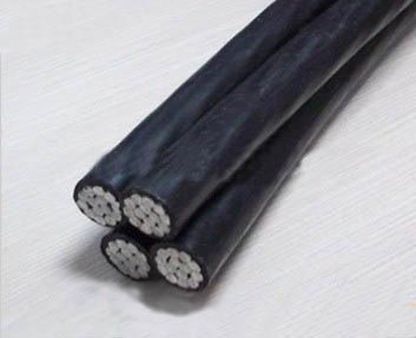

ABC Conductor & Cables

ABC Conductor & Cables

• Cond aerial bund 4C XLPE 70SQ / 35SQ • Cond aerial bund 3C XLPE 70SQ / 35SQ • Cond acsr mink 10.98D ungrs • Cond acsr wolf 18.13D ungrs • Cond acsr kingbird 23.90D ungrs • Cond acsr hare 14.16D ungrs • Cond aaac pine 10.83D GRS • Cond aac oak 13.95D GRS

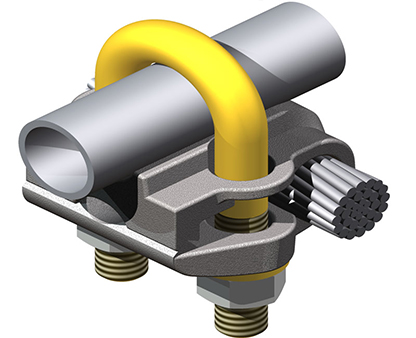

Insulation Piercing Connectors/ Substation Clamps

Insulation Piercing Connectors

• Clamp, ipc bimet 35-95B/35-95I
• Clamp, ipc bn-serv-35
• Clamp,crosss 16.3mm-26mm K1
• Clamp,comp tbc t80/38/ci o deg
• Clamp,p/g 2b al-al 4-15 dia m
• Clamp: ept - b; run 38.3mm on 4 hole pad • Clamp:ept-a; run 26.5mm on 4 hole pad
• Clamp,strain;epc-a;26.5mm palm ODG

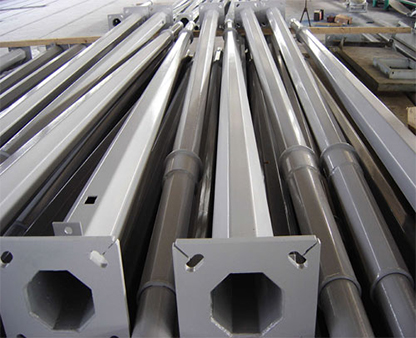

Wooden & Steel Poles, floodlighting / Lighting masts

Wooden & Steel Poles, floodlighting / Lighting masts

• Bracket,pole top 402x60x110 arm
• Bracket,str light S/POLE 1500 EXTN
• Bracket,str light W/POLE 500x42
• Bracket,strut wood POLE 10x60x720
• Plate,yoke triang 150mm CRS 120kn
• Platform,equip h-pole 2600mm LG

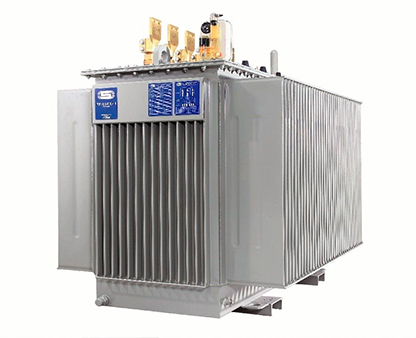

Distribution Transformers

Distribution Transformers

• TRFR 10mva 132/11kv oltc ynd1 31
• TRFR 10mva 22/11kV OLTC YNyn0 31
• TFR 100kva 11kv/415V coastal /inland
• TFR 16kVA 11kV/240V coastal /inland
• TFR 16kVA 22kV/240V coastal /inland
• TFR 25kVA 11kV/415V inland /coastal
• TFR 25kVA 22kV/415V inland /coastal
• TFR 32kVA 11kV/+240/-240V coastal / inland
• TFR 50kVA 11kV/415V coastal /inland


Surge Arrestors – Station & Distribution Class

Surge Arrestors – Station & Distribution Class

• S/ARR Dist 11kv mcov 10kv coastal / Indland
• S/ARR Dist 22kv mcov 19.2kv coastal / Inland
• S/ARR Neutral 6kv 10ka o/Bush
• S/ARR S/CL 88KV mcov 56KV 31 / 20
• S/ARR S/CL 66KV mcov 48KVA 31 /20
• S/ARR S/CL 6.6KV mcov 7.2kv 31 /20
• S/ARR S/CL 33KV & 44KV mcov 36kv 31 /20


Insulators/ Line Post Insulators

Insulators/ Line Post Insulators

• Insul L/Post 66kv 780 T/C 31C
• Insul B/Post SQ 132kv 5.3kn D/E 20C
• Insul Capped post 22kv 10kn HVH
• Insul Capped post 22kv 4kn HVH
• Insul L/post 66KV 900 T/C 31C
• Insul L/Post 33kv 900 T/C 31C
• Insul L/Post AL comp 22kv 10kn HVH
• Insul,l/post al comp 22kV 4kN HVH
• Insul,l/post comp 33kV 10kN HVH


All Copper Earthing products (Flat & round Cut earthing)

All Copper Earthing products (Flat & round Cut earthing)

• Ferrule,crimp cu 16SQ D8020
• Connector,lug:70mm2:m12:STD IEC 1238.1
• Connector,lug:120 mm2:m12
• Ferrule,crimp cu 70 sq non-butt D3076
• Lug,crimp cu 4.0sqxm6 F/H D3102
• Connector,lug:300 MM2:M12:CU:XLPE
• Connector,lug:50 mm2:CU:XPLE
• Connector,lug;95 mm2:m12:CU:XPLE

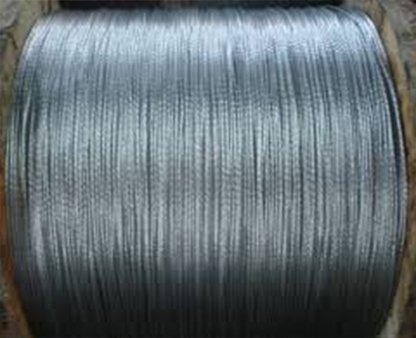

Stay wire & HV/LV Stays

Stay wire & HV/LV Stays

• Wire strand,st 3x4.00 1100mpa
• Wire strand,st 7x3.35 1100mpa
• Wire strand,st 19x2.65 1100mpa
• Wire strand,st 3x3.35 1100mpa 100m
• Wire strand,st 3x3.35 1100mpa 1500m
• Wire strand,st 7x4.0 1100mpa 1500m

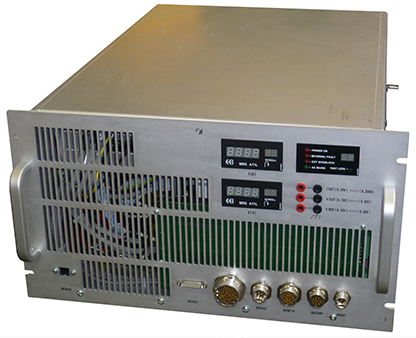

Modems & Module for Substations

Modems & Module for Substations

• Module,ac 230v 1ph scheme 2 ac/dc
• Module,ac supply scheme distr:brd
• Module:scheme 1 of ac/dc distribution
• Panel,elect pwr;yard ac distribution
• Dist board ac dua/dist/term contr
• Module,ac 400v 3ph scheme ac/dc
• Module,ac 230v 1ph scheme 2 ac/dc
• Module:scheme 1 of ac/dc distribution
• Assy,cabinet ac/dc db 28/20 way

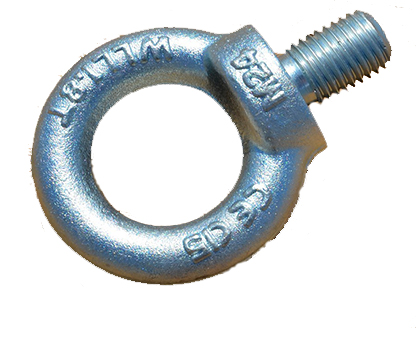

Line Hardware for 11 – 132kV networks

Line Hardware for 11 – 132kV networks

• Anchor assy,st soil 380x220x70
• Anchor,rock 114kn HV 2 eyed S/ROD
• Bolt, eye galv m20x250
• Bolt,pigtail assy m16x380
• Bracket,angle:wd 60 mm;lg 121 mm
• Bracket,strain OP.1 ST UTS 120kn
• Clip,bonding 22d hole galv
• Nut,eye 40kn for M16x2,0-6H bolt


Steel cross arms & platforms

Steel cross arms & platforms

• X/arm:stl;wd 100mm x lg 2.4m x ht 50mm
• XARM, st Interm T 50x50x6x600lg L
• Xarm, st Interm T 90x65x8x2000lg L
• Xarm,a-frame st strain 1500 lg
• Xarm,st channel 1300lg fox/mink
• Xarm,st Strn CHCK-K/BRD 150x75x1700
• Xarm,st strn mink+har125x75x1700lg
• Aux contact mcb s28 * series, prot
• Aux contact mcb s20 * series, prot

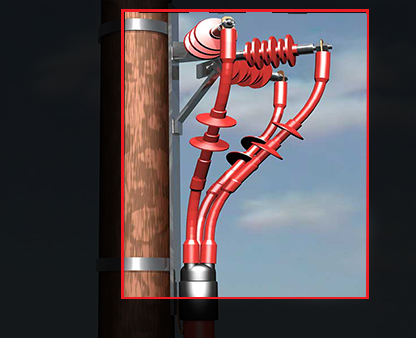

Joints & Terminations

Joints & Terminations

• Joint kit 3c 11kv 120-185sq pilc
• Joint kit 3c 11kv 50- 95sq pilc
• Term kit 3c 11kv 50-95sq od pilc
• Term kit 3c 11kv 16-35sq od pilc
• Joint KIT 3C 11kv 120-185 SQ PILC
• Joint KIT 3C 11kv 240-400SQ XLPE
• Joint KIT 3C 11kv 50-95SQ XLPE
• JOINT KIT 1C 11kv 500-630 SQ PILC
• Term kit 1c 11kv 500-800SQ ID pilc
